TL-SG5428(交換機)命令行使用說明書pdf格式

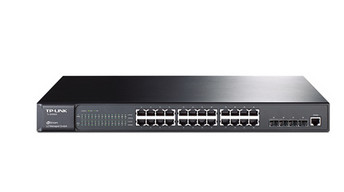

TL-SG5428是一款千兆二層全網管交換機，支持靜態路由功能，完善的QoS策略以及豐富的VLAN功能，易于管理維護。以下文檔是TL-SG5428命令行手冊，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。

TL-SG5428命令行手冊目錄

手冊概述 ...................................................................................................................1
第1章 命令行使用指導...............................................................................................4
1.1 使用命令行..........................................................................................................4
1.2 命令行模式........................................................................................................16
1.3 命令行安全等級.................................................................................................18
1.4 命令行格式約定.................................................................................................18
第2章 用戶界面.......................................................................................................20
2.1 enable...............................................................................................................20
2.2 enable password...............................................................................................20
2.3 disable..............................................................................................................20
2.4 configure...........................................................................................................21
2.5 exit....................................................................................................................21
2.6 end....................................................................................................................22
2.7 history...............................................................................................................22
2.8 history clear......................................................................................................22
第3章 IEEE 802.1Q VLAN配置命令.......................................................................24
3.1 vlan...................................................................................................................24
3.2 interface vlan....................................................................................................24
3.3 name.................................................................................................................25
3.4 switchport mode................................................................................................25
3.5 switchport access vlan......................................................................................26
3.6 switchport trunk allowed vlan............................................................................26
3.7 switchport general allowed vlan........................................................................27
3.8 switchport pvid..................................................................................................27
3.9 show vlan summary..........................................................................................28
3.10 show vlan brief..................................................................................................28
3.11 show vlan..........................................................................................................28
第4章 協議VLAN配置命令.......................................................................................30
4.1 protocol-vlan template......................................................................................30
4.2 protocol-vlan vlan..............................................................................................30
4.3 protocol-vlan.....................................................................................................31
4.4 show protocol-vlan template.............................................................................31
4.5 show protocol-vlan vlan....................................................................................32
4.6 show protocol-vlan interface.............................................................................32
第5章 VLAN-配置命令......................................................................................33
5.1 dot1q-tunnel......................................................................................................33
5.2 dot1q-tunnel tpid...............................................................................................33
5.3 switchport dot1q-tunnel enable.........................................................................33
5.4 switchport dot1q-tunnel mode uplink................................................................34
5.5 show dot1q-tunnel............................................................................................34
5.6 show dot1q-tunnel interface..............................................................................34
5.7 show dot1q-tunnel uplink..................................................................................35
第6章 語音VLAN配置命令.......................................................................................36
6.1 voice vlan..........................................................................................................36
6.2 voice vlan aging time........................................................................................36
6.3 voice vlan mac-address....................................................................................37
6.4 switchport voice vlan mode...............................................................................37
6.5 switchport voice vlan security...........................................................................38
6.6 show voice vlan................................................................................................38
6.7 show voice vlan oui...........................................................................................38
6.8 show voice vlan switchport...............................................................................39
第7章 Private VLAN配置命令..................................................................................40
7.1 private-vlan primary..........................................................................................40
7.2 private-vlan secondary......................................................................................40
7.3 private-vlan association....................................................................................41
7.4 switchport private-vlan......................................................................................41
7.5 switchport private-vlan host-association...........................................................41
7.6 switchport private-vlan mapping.......................................................................42
7.7 show vlan private-vlan......................................................................................43
第8章 靜態路由配置命令...........................................................................................44
8.1 ip address.........................................................................................................44
8.2 ip route..............................................................................................................44
8.3 show ip interface vlan.......................................................................................45
8.4 show ip route....................................................................................................45
8.5 show arp...........................................................................................................46
第9章 代理ARP配置命令.........................................................................................47
9.1 ip proxy-arp.......................................................................................................47
9.2 show ip proxy-arp.............................................................................................47
第10章 DHCP服務器配置命令.................................................................................48
10.1 ip dhcp server...................................................................................................48
10.2 ip dhcp server excluded-address......................................................................48
10.3 ip dhcp server pool...........................................................................................49
10.4 network.............................................................................................................49
10.5 default-gateway................................................................................................50
10.6 dns-server.........................................................................................................50
10.7 lease.................................................................................................................51
10.8 address.............................................................................................................51
10.9 show ip dhcp server status...............................................................................52
10.10 show ip dhcp server excluded-address.............................................................52
10.11 show ip dhcp server pool..................................................................................52
10.12 show ip dhcp server manual-binding................................................................53
10.13 show ip dhcp server statistics...........................................................................53
第11章 DHCP中繼配置命令.......................................................................................54
11.1 ip dhcp relay.....................................................................................................54
11.2 ip dhcp relay helper-address............................................................................54
11.3 ip dhcp relay information option........................................................................55
11.4 ip dhcp relay information policy.........................................................................55
11.5 ip dhcp relay information option customization.................................................55
11.6 ip dhcp relay information option circuit-id..........................................................56
11.7 ip dhcp relay information option remote-id........................................................56
11.8 show ip dhcp relay............................................................................................57
11.9 show ip dhcp relay helper-address...................................................................57
第12章 GVRP配置命令..............................................................................................58
12.1 gvrp (global)......................................................................................................58
12.2 gvrp (interface)..................................................................................................58
12.3 gvrp registration................................................................................................59
12.4 gvrp timer..........................................................................................................59
12.5 show gvrp global...............................................................................................60
12.6 show gvrp interface...........................................................................................60
第13章 EtherChannel配置命令.................................................................................61
13.1 channel-group...................................................................................................61
13.2 port-channel load-balance................................................................................61
13.3 lacp system-priority...........................................................................................62
13.4 lacp port-priority................................................................................................62
13.5 show etherchannel............................................................................................63
13.6 show etherchannel load-balance......................................................................63
13.7 show lacp..........................................................................................................64
13.8 show lacp sys-id...............................................................................................64
第14章 用戶管理配置命令...........................................................................................65
14.1 user name.........................................................................................................65
14.2 user access-control ip-based............................................................................65
14.3 user access-control mac-based........................................................................66
14.4 user access-control port-based........................................................................66
14.5 user max-number..............................................................................................67
14.6 user idle-timeout...............................................................................................67
14.7 line....................................................................................................................68
14.8 password..........................................................................................................68
14.9 login..................................................................................................................69
14.10 login local..........................................................................................................69
14.11 show user account-list......................................................................................70
14.12 show user configuration....................................................................................70
第15章 綁定列表配置命令...........................................................................................71
15.1 ip source binding...............................................................................................71
15.2 ip dhcp snooping...............................................................................................72
15.3 ip dhcp snooping global....................................................................................72
15.4 ip dhcp snooping information option.................................................................73
15.5 ip dhcp snooping information strategy..............................................................73
15.6 ip dhcp snooping information remote-id............................................................74
15.7 ip dhcp snooping information circuit-id..............................................................74
15.8 ip dhcp snooping trust.......................................................................................75
15.9 ip dhcp snooping mac-verify.............................................................................75
15.10 ip dhcp snooping limit rate................................................................................75
15.11 ip dhcp snooping decline..................................................................................76
15.12 show ip source binding.....................................................................................76
15.13 show ip dhcp snooping.....................................................................................77
15.14 show ip dhcp snooping information...................................................................77
15.15 show ip dhcp snooping interface.......................................................................77
第16章 IP源防護配置命令..........................................................................................79
16.1 ip verify source..................................................................................................79
16.2 show ip verify source........................................................................................79
第17章 DoS防護命令.................................................................................................80
17.1 ip dos-prevent...................................................................................................80
17.2 ip dos-prevent type...........................................................................................80
17.3 show ip dos-prevent..........................................................................................81
第18章 IEEE 802.1X配置命令....................................................................................82
18.1 dot1x system-auth-control................................................................................82
18.2 dot1x auth-method............................................................................................82
18.3 dot1x guest-vlan(global)...................................................................................83
18.4 dot1x quiet-period.............................................................................................83
18.5 dot1x timeout....................................................................................................83
18.6 dot1x max-reauth-req.......................................................................................84
18.7 dot1x.................................................................................................................84
18.8 dot1x guest-vlan(interface)...............................................................................85
18.9 dot1x port-control..............................................................................................85
18.10 dot1x port-method.............................................................................................86
18.11 radius................................................................................................................86
18.12 radius server-account.......................................................................................87
18.13 show dot1x global.............................................................................................88
18.14 show dot1x interface.........................................................................................88
18.15 show radius accounting....................................................................................88
18.16 show radius authentication...............................................................................89
第19章 系統日志配置命令...........................................................................................90
19.1 logging buffer....................................................................................................90
19.2 logging file flash................................................................................................90
19.3 clear logging.....................................................................................................91
19.4 logging host index.............................................................................................91
19.5 show logging local-config..................................................................................92
19.6 show logging loghost........................................................................................92
19.7 show logging buffer...........................................................................................93
19.8 show logging flash............................................................................................93
第20章 SSH配置命令.................................................................................................94
20.1 ip ssh server.....................................................................................................94
20.2 ip ssh version....................................................................................................94
20.3 ip ssh timeout...................................................................................................95
20.4 ip ssh max-client...............................................................................................95
20.5 ip ssh download................................................................................................95
20.6 show ip ssh.......................................................................................................96
第21章 SSL配置命令.................................................................................................97
21.1 ip http secure-server.........................................................................................97
21.2 ip http secure-server download certificate........................................................97
21.3 ip http secure-server download key..................................................................98
21.4 show ip http secure-server................................................................................98
第22章 地址配置命令..................................................................................................99
22.1 mac address-table static...................................................................................99
22.2 mac address-table aging-time...........................................................................99
22.3 mac address-table filtering..............................................................................100
22.4 mac address-table max-mac-count.................................................................100
22.5 show mac address-table address...................................................................101
22.6 show mac address-table aging-time...............................................................101
22.7 show mac address-table max-mac-count interface gigabitEthernet................102
22.8 show mac address-table interface gigabitEthernet.........................................102
22.9 show mac address-table mac-num.................................................................103
22.10 show mac address-table mac.........................................................................103
22.11 show mac address-table vlan.........................................................................103
第23章 系統配置命令................................................................................................105
23.1 system-time manual........................................................................................105
23.2 system-time ntp..............................................................................................105
23.3 system-time dst predefined.............................................................................106
23.4 system-time dst date.......................................................................................106
23.5 system-time dst recurring...............................................................................107
23.6 hostname........................................................................................................108
23.7 location...........................................................................................................108
23.8 contact-info.....................................................................................................109
23.9 ip address.......................................................................................................109
23.10 ip address-alloc dhcp.......................................................................................110
23.11 ip address-alloc bootp......................................................................................110
23.12 reset.................................................................................................................111
23.13 reboot..............................................................................................................111
23.14 copy running-config startup-config...................................................................111
23.15 copy startup-config tftp.....................................................................................112
23.16 copy tftp startup-config.....................................................................................112
23.17 firmware upgrade.............................................................................................113
23.18 ping..................................................................................................................113
23.19 tracert..............................................................................................................114
23.20 loopback interface............................................................................................114
23.21 show system-time............................................................................................115
23.22 show system-time dst......................................................................................115
23.23 show system-time ntp......................................................................................115
23.24 show system-info.............................................................................................116
23.25 show running-config.........................................................................................116
23.26 show cable-diagnostics interface.....................................................................116
第24章 以太網配置命令.............................................................................................118
24.1 interface gigabitEthernet..................................................................................118
24.2 interface range gigabitEthernet........................................................................118
24.3 description.......................................................................................................119
24.4 shutdown.........................................................................................................119
24.5 flow-control.....................................................................................................120
24.6 duplex.............................................................................................................120
24.7 speed..............................................................................................................120
24.8 storm-control broadcast..................................................................................121
24.9 storm-control multicast....................................................................................121
24.10 storm-control unicast......................................................................................122
24.11 storm-control rate............................................................................................122
24.12 bandwidth.......................................................................................................123
24.13 clear counters.................................................................................................123
24.14 show interface status......................................................................................124
24.15 show interface counters..................................................................................124
24.16 show interface description..............................................................................125
24.17 show interface flowcontrol..............................................................................125
24.18 show interface configuration...........................................................................126
24.19 show storm-control.........................................................................................126
24.20 show bandwidth..............................................................................................126
第25章 QoS配置命令...............................................................................................128
25.1 qos..................................................................................................................128
25.2 qos cos...........................................................................................................128
25.3 qos dscp.........................................................................................................129
25.4 qos queue cos-map........................................................................................129
25.5 qos queue dscp-map......................................................................................130
25.6 qos queue mode.............................................................................................131
25.7 show qos interface..........................................................................................131
25.8 show qos cos-map..........................................................................................132
25.9 show qos dscp-map........................................................................................132
25.10 show qos queue mode....................................................................................132
25.11 show qos status..............................................................................................133
第26章 端口監控配置命令.........................................................................................134
26.1 monitor session destination interface..............................................................134
26.2 monitor session source interface....................................................................134
26.3 show monitor session.....................................................................................135
第27章 端口隔離配置命令.........................................................................................136
27.1 port isolation...................................................................................................136
27.2 show port isolation..........................................................................................136
第28章 環路監測配置命令.........................................................................................137
28.1 loopback-detection(global)..............................................................................137
28.2 loopback-detection interval.............................................................................137
28.3 loopback-detection recovery-time...................................................................138
28.4 loopback-detection(interface).........................................................................138
28.5 loopback-detection config...............................................................................138
28.6 loopback-detection recover.............................................................................139
28.7 show loopback-detection global......................................................................139
28.8 show loopback-detection interface..................................................................140
第29章 ACL配置命令...............................................................................................141
29.1 time-range......................................................................................................141
29.2 absolute..........................................................................................................141
29.3 periodic...........................................................................................................142
29.4 holiday............................................................................................................142
29.5 holiday(global)................................................................................................143
29.6 access-list create............................................................................................143
29.7 mac access-list...............................................................................................144
29.8 access-list standard........................................................................................144
29.9 access-list extended.......................................................................................145
29.10 rule..................................................................................................................146
29.11 access-list policy name...................................................................................147
29.12 access-list policy action..................................................................................147
29.13 redirect interface.............................................................................................148
29.14 s-condition......................................................................................................148
29.15 s-mirror...........................................................................................................149
29.16 access-list bind(interface)...............................................................................149
29.17 access-list bind(vlan)......................................................................................150
29.18 show time-range.............................................................................................150
29.19 show holiday...................................................................................................151
29.20 show access-list..............................................................................................151
29.21 show access-list policy...................................................................................151
29.22 show access-list bind......................................................................................152
第30章 MSTP配置命令............................................................................................153
30.1 spanning-tree(global)......................................................................................153
30.2 spanning-tree(interface)..................................................................................153
30.3 spanning-tree common-config........................................................................154
30.4 spanning-tree mode........................................................................................155
30.5 spanning-tree mst configuration......................................................................155
30.6 instance..........................................................................................................155
30.7 name...............................................................................................................156
30.8 revision...........................................................................................................156
30.9 spanning-tree mst instance.............................................................................157
30.10 spanning-tree mst...........................................................................................157
30.11 spanning-tree priority......................................................................................158
30.12 spanning-tree tc-defend..................................................................................158
30.13 spanning-tree timer.........................................................................................159
30.14 spanning-tree hold-count................................................................................160
30.15 spanning-tree max-hops.................................................................................160
30.16 spanning-tree bpdufilter..................................................................................161
30.17 spanning-tree bpduguard................................................................................161
30.18 spanning-tree guard loop................................................................................161
30.19 spanning-tree guard root................................................................................162
30.20 spanning-tree guard tc....................................................................................162
30.21 spanning-tree mcheck....................................................................................163
30.22 show spanning-tree active..............................................................................163
30.23 show spanning-tree bridge..............................................................................163
30.24 show spanning-tree interface..........................................................................164
30.25 show spanning-tree interface-security............................................................164
30.26 show spanning-tree mst..................................................................................165
第31章 IGMP配置命令.............................................................................................166
31.1 ip igmp snooping(global).................................................................................166
31.2 ip igmp snooping(interface)............................................................................166
31.3 ip igmp snooping immediate-leave.................................................................167
31.4 ip igmp snooping drop-unknown.....................................................................167
31.5 ip igmp snooping vlan-config..........................................................................167
31.6 ip igmp snooping multi-vlan-config..................................................................168
31.7 ip igmp snooping filter add-id..........................................................................169
31.8 ip igmp snooping filter(global).........................................................................170
31.9 ip igmp snooping filter(interface).....................................................................170
31.10 ip igmp snooping filter maxgroup....................................................................171
31.11 ip igmp snooping filter mode...........................................................................171
31.12 show ip igmp snooping...................................................................................172
31.13 show ip igmp snooping interface.....................................................................172
31.14 show ip igmp snooping vlan............................................................................173
31.15 show ip igmp snooping multi-vlan...................................................................173
31.16 show ip igmp snooping groups.......................................................................173
31.17 show ip igmp snooping filter...........................................................................174
第32章 SNMP配置命令............................................................................................175
32.1 snmp-server....................................................................................................175
32.2 snmp-server view............................................................................................175
32.3 snmp-server group..........................................................................................176
32.4 snmp-server user............................................................................................177
32.5 snmp-server community.................................................................................178
32.6 snmp-server host............................................................................................178
32.7 snmp-server engineID....................................................................................179
32.8 snmp-server traps snmp.................................................................................180
32.9 snmp-server traps link-status..........................................................................181
32.10 snmp-server traps...........................................................................................181
32.11 snmp-server traps mac...................................................................................182
32.12 snmp-server traps vlan...................................................................................183
32.13 rmon history....................................................................................................184
32.14 rmon event......................................................................................................184
32.15 rmon alarm.....................................................................................................185
32.16 show snmp-server..........................................................................................186
32.17 show snmp-server view..................................................................................186
32.18 show snmp-server group................................................................................187
32.19 show snmp-server user..................................................................................187
32.20 show snmp-server community........................................................................187
32.21 show snmp-server host...................................................................................188
32.22 show snmp-server engineID...........................................................................188
32.23 show rmon history...........................................................................................188
32.24 show rmon event............................................................................................189
32.25 show rmon alarm............................................................................................189
第33章 LLDP配置命令.............................................................................................190
33.1 lldp..................................................................................................................190
33.2 lldp hold-multiplier...........................................................................................190
33.3 lldp timer.........................................................................................................191
33.4 lldp receive......................................................................................................191
33.5 lldp transmit....................................................................................................192
33.6 lldp snmp-trap.................................................................................................192
33.7 lldp tlv-select...................................................................................................193
33.8 show lldp.........................................................................................................194
33.9 show lldp interface..........................................................................................194
33.10 show lldp local-information interface...............................................................195
33.11 show lldp neighbor-information interface........................................................195
33.12 show lldp traffic interface................................................................................196
第34章 集群配置命令................................................................................................197
34.1 cluster ndp......................................................................................................197
34.2 cluster ntdp.....................................................................................................198
34.3 cluster explore................................................................................................198
34.4 cluster.............................................................................................................199
34.5 cluster ip pool..................................................................................................199
34.6 cluster commander.........................................................................................200
34.7 cluster manage...............................................................................................200
34.8 cluster member...............................................................................................201
34.9 cluster candidate.............................................................................................201
34.10 cluster individual.............................................................................................201
34.11 cluster management-vlan...............................................................................202
34.12 show cluster ndp.............................................................................................202
34.13 show cluster neighbour...................................................................................203
34.14 show cluster ntdp............................................................................................203
34.15 show cluster....................................................................................................204
34.16 show cluster member......................................................................................204
34.17 show cluster manage role...............................................................................204

TL-SG5428配置特權模式密碼

TL-SG5428硬件規格

網絡標準
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab 、IEEE 802.3z、IEEE 802.3x、IEEE 802.1X、IEEE 802.1q 、IEEE 802.1p、IEEE 802.1s、IEEE 802.1d 、IEEE 802.1w、IEEE 802.3ad、IEEE 802.1v
端口
24個10/100/1000Mbps RJ45 端口
4個獨立的千兆SFP光纖口
1個Console口
指示燈
每端口具有1個Link/Ack 、Speed指示燈
每設備具有1個Power、System指示燈
性能
存儲轉發
支持56Gbps的背板帶寬
支持16K的MAC地址表深度
使用環境
工作溫度：0℃～40℃
存儲溫度：-40℃～70℃
工作濕度：10%～90% RH不凝結
存儲濕度：5%～90% RH不凝結
輸入電源
100－240V～ 50/60Hz
外形尺寸（L×W×H）
440mm×260mm×44mm
