TL-WA7210N配置詳細說明書pdf格式

TL-WA7210N是一款150M室外高功率無線接入器，支持IEEE 802.11b/g/n標準，無線速率達150Mbps，支持60米范圍內Passive PoE供電。以下文檔是TL-WA7210N詳細配置指南，有需要的朋友可立即下載此文檔。
溫馨提示：

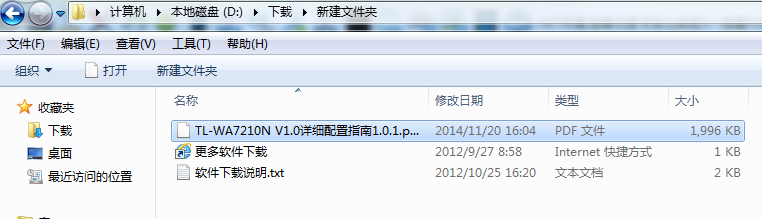

本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。

TL-WA7210N詳細配置指南目錄

第1章產品概述...........................................................................................................................1

1.1產品簡介...................................................................................................................................1

1.2主要特性...................................................................................................................................1

1.3本書約定...................................................................................................................................2

第2章硬件描述...........................................................................................................................3

2.1前面板示意圖...........................................................................................................................3

2.2后面板......................................................................................................................................4

2.3系統需求...................................................................................................................................4

2.4安裝環境...................................................................................................................................4

第3章快速安裝指南....................................................................................................................5

3.1硬件連接...................................................................................................................................5

3.1.1AP客戶端路由模式..........................................................................................................5

3.1.2AP路由模式.....................................................................................................................5

3.1.3接入點模式.......................................................................................................................6

3.1.4多SSID模式....................................................................................................................6

3.1.5中繼模式...........................................................................................................................7

3.1.6橋接模式...........................................................................................................................7

3.1.7客戶端模式.......................................................................................................................8

3.2建立正確的網絡連接.................................................................................................................8

3.3快速安裝指南.........................................................................................................................11

3.3.1AP客戶端路由...............................................................................................................13

3.3.2AP路由...........................................................................................................................16

3.3.3接入點.............................................................................................................................19

3.3.4多SSID...........................................................................................................................20

3.3.5中繼................................................................................................................................23

3.3.6橋接................................................................................................................................26

3.3.7客戶端.............................................................................................................................29

第4章接入點模式、多SSID模式、中繼模式、橋接模式和客戶端模式......................................................32

4.1登錄........................................................................................................................................32

4.2運行狀態.................................................................................................................................32

4.3設置向?qū)?................................................................................................................................33

4.4工作模式.................................................................................................................................33

4.5網絡參數.................................................................................................................................34

4.6無線設置.................................................................................................................................34

4.6.1無線基本設置..................................................................................................................35

4.6.2無線安全設置..................................................................................................................36

4.6.3無線MAC地址過濾........................................................................................................40

4.6.4無線高級設置..................................................................................................................42

4.6.5天線對準.........................................................................................................................43

4.6.6無線距離設置..................................................................................................................43

4.6.7無線流量監測..................................................................................................................44

4.6.8無線主機狀態..................................................................................................................45

4.7DHCP服務器.........................................................................................................................45

4.7.1DHCP服務.....................................................................................................................45

4.7.2客戶端列表.....................................................................................................................46

4.7.3靜態地址分配..................................................................................................................47

4.8系統工具.................................................................................................................................48

4.8.1SNMP.............................................................................................................................48

4.8.2時間設置.........................................................................................................................49

4.8.3診斷工具.........................................................................................................................50

4.8.4看門狗.............................................................................................................................51

4.8.5簡單速率測試..................................................................................................................52

4.8.6軟件升級.........................................................................................................................52

4.8.7恢復出廠設置..................................................................................................................53

4.8.8備份和載入配置..............................................................................................................53

4.8.9重啟設備.........................................................................................................................54

4.8.10修改登錄口令..................................................................................................................55

4.8.11系統日志.........................................................................................................................55

4.8.12流量統計.........................................................................................................................56

第5章AP客戶端路由模式和AP路由模式...............................................................................58

5.1登錄........................................................................................................................................58

5.2運行狀態.................................................................................................................................58

5.3設置向?qū)?................................................................................................................................59

5.4工作模式.................................................................................................................................59

5.5網絡參數.................................................................................................................................60

5.5.1WAN口設置...................................................................................................................60

5.5.2MAC地址克隆................................................................................................................67

II

5.5.3LAN口設置.....................................................................................................................68

5.6無線設置.................................................................................................................................68

5.6.1無線基本設置..................................................................................................................69

5.6.2無線安全設置..................................................................................................................71

5.6.3無線MAC地址過濾........................................................................................................74

5.6.4無線高級設置..................................................................................................................76

5.6.5天線對準.........................................................................................................................77

5.6.6無線距離設置..................................................................................................................77

5.6.7無線流量監測..................................................................................................................78

5.6.8無線主機狀態..................................................................................................................78

5.7DHCP服務器.........................................................................................................................79

5.7.1DHCP設置服務..............................................................................................................79

5.7.2客戶端列表.....................................................................................................................80

5.7.3靜態地址分配..................................................................................................................80

5.8轉發規則.................................................................................................................................81

5.8.1虛擬服務器.....................................................................................................................82

5.8.2特殊應用程序..................................................................................................................83

5.8.3DMZ主機........................................................................................................................84

5.8.4UPnP設置......................................................................................................................85

5.9防火墻設置.............................................................................................................................85

5.9.1安全設置.........................................................................................................................86

5.9.2高級安全設置..................................................................................................................86

5.9.3局域網WEB管理...........................................................................................................88

5.9.4遠端WEB管理...............................................................................................................89

5.10家長控制.............................................................................................................................90

5.11訪問控制.............................................................................................................................92

5.11.1控制規則.........................................................................................................................93

5.11.2主機列表.........................................................................................................................96

5.11.3訪問目標.........................................................................................................................96

5.11.4日程計劃.........................................................................................................................97

5.12路由功能.............................................................................................................................98

5.12.1靜態路由表.....................................................................................................................99

5.12.2系統路由表.....................................................................................................................99

5.13IP帶寬控制..........................................................................................................................100

5.13.1控制設置.......................................................................................................................100

5.13.2控制規則.......................................................................................................................101

5.14IP與MAC綁定....................................................................................................................102

5.14.1靜態ARP綁定設置.......................................................................................................102

5.14.2ARP映射表..................................................................................................................103

5.15動態DNS..........................................................................................................................103

5.16系統工具...........................................................................................................................105

5.16.1時間設置.......................................................................................................................105

5.16.2診斷工具.......................................................................................................................106

5.16.3軟件升級.......................................................................................................................107

5.16.4恢復出廠設置................................................................................................................108

5.16.5備份和載入配置............................................................................................................108

5.16.6重啟設備.......................................................................................................................109

5.16.7修改登錄口令................................................................................................................110

5.16.8系統日志.......................................................................................................................110

5.16.9流量統計.......................................................................................................................111

附錄A:FAQ...................................................................................................................113

附錄B:IE瀏覽器設置........................................................................................................................116

附錄C:POE的使用...........................................................................................................................119

附錄D:規格參數...............................................................................................................................121

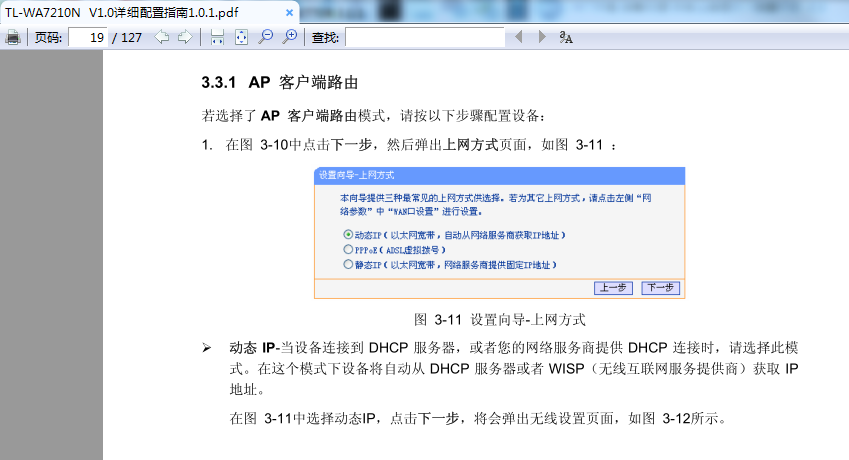

TL-WA7210NAP客戶端路由設置（部分預覽）

TL-WA7210N硬件規格

網絡標準
IEEE 802.11n、E 802.11g、IEEE 802.11b、IEEE 802.3、IEEE 802.3u
端口
1個10/100M自適應LAN口，支持自動翻轉，支持Passive PoE
1個RP-SMA外置天線接口
1個接地孔位
工作頻率
2.4-2.4835GHz
無線速率
802.11n: 最高達150Mbps (動態)
802.11g: 最高達54Mbps (動態)
接收靈敏度
802.11n 150M: -76dBm 121.5M: -78dBm 108M: -80dBm 81M: -84dBm 54M:-87dBm 40.5M:-91dBm 27M:-92dBm 13.5M:-95dBm
802.11g 54M: -79dBm 48M: -81dBm 36M: -85dBm 12M: -92dBm 6M:-95dBm
指示燈
每設備具有1個Power、LAN、信號強度指示燈
按鈕
1個Reset復位按鈕
天線
2根12dBi雙極化定向天線
輻射寬度
水平方向 60° ，垂直方向 30°
外部電源
12VDC/1.0A，支持60米范圍內Passive PoE供電
使用環境
工作溫度：-30℃ 到 70℃
存儲溫度：-40℃ 到 70℃
工作濕度：10% 到 90% RH不凝結
存儲濕度：5% 到 90% RH不凝結
尺寸
250 mmx 85mm x 60.5mm
雷擊防護
15KV ESD 防雷
4000V防雷
接地端子
最遠無線傳輸距離
3000米以上
