TL-SC3171攝像機用戶使用說明書(英文版)pdf格式

TL-SC3171是一款3GPP網絡攝像機，為夜視型，內置紅外發光管，支持10米夜視，支持雙路語音通信、郵件告警功能。以下文檔是TL-SC3171用戶手冊，為英文版本，有需要的朋友可立即下載此文檔。

溫馨提示：

本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。

TL-SC3171用戶手冊目錄

Package Contents.........................................................................................................................1

Chapter 1  Minimum System Requirements.............................................................................2

Chapter 2  Physical Overview....................................................................................................3

2.1  Front View...................................................................................................................3

2.2  Bottom view.................................................................................................................3

Chapter 3  Using IP Camera via Web Browser.........................................................................5

3.1  Obain the IP Address ..................................................................................................5

3.2  Windows Web Browser ...............................................................................................7

3.3  Mac Web Browser.......................................................................................................9

Chapter 4  Using IP Camera via Mobile Phone ......................................................................12

4.1  3G Streaming Mobile View Mode..............................................................................12

4.2  3G Web Brower Mobile View Mode...........................................................................14

4.3  2.5G WAP Browser Snapshot Mode .........................................................................16

4.4  2.5G Web Browser Snapshot Mode..........................................................................16

4.5  Mobile View on Windows Mobile 6 Smart Phone......................................................16

Chapter 5  Configuration of Main Menu..................................................................................20

5.1  Live View...................................................................................................................20

5.1.1  Snapshot..............................................................................................................20

5.1.2  Zoom in / out the image via the monitor window..................................................21

5.1.3  Video play buttons................................................................................................21

5.1.4  Audio buttons.......................................................................................................21

5.2  Setting.......................................................................................................................22

5.3  Client Setting.............................................................................................................22

5.3.1  Mode....................................................................................................................23

5.3.2  View Size .............................................................................................................23

5.3.3  Protocol................................................................................................................23

5.3.4  Video Buffer .........................................................................................................24

5.4  Image Setup..............................................................................................................24

5.4.1  Brightness............................................................................................................24

5.4.2  Contrast ...............................................................................................................24

5.4.3  Saturation.............................................................................................................24

5.4.4  Hue ......................................................................................................................24

5.4.5  Default..................................................................................................................24

Chapter 6  Setting-BASIC.........................................................................................................25

6.1  System......................................................................................................................25

6.1.1  Information...........................................................................................................25

6.1.2  Date/Time.............................................................................................................26

6.1.3  Initialize................................................................................................................27

6.2  Camera .....................................................................................................................28

6.2.1  General................................................................................................................28

6.2.2  MPEG4 ................................................................................................................29

6.2.3  MJPEG.................................................................................................................32

6.3  Network.....................................................................................................................33

6.3.1  Information...........................................................................................................34

6.3.2  PPPoE (Point-to-Point Protocol over Ethernet)....................................................36

6.3.3  DDNS (Dynamic DNS).........................................................................................37

6.3.4  UPnP (Universal Plug and Play) ..........................................................................41

6.3.5  Bonjour.................................................................................................................42

6.3.6  IP Notification.......................................................................................................43

6.3.7  Messenger ...........................................................................................................44

6.4  Security.....................................................................................................................49

6.4.1  Account................................................................................................................50

6.4.2  HTTPS.................................................................................................................51

Chapter 7  Setting-Advance.....................................................................................................53

7.1  FTP client..................................................................................................................53

7.1.1  General................................................................................................................54

7.1.2  Alarm sending......................................................................................................54

7.1.3  Periodical sending................................................................................................58

7.2  SMTP........................................................................................................................59

7.2.1  General................................................................................................................60

7.2.2  Alarm sending......................................................................................................63

7.2.3  Periodical sending................................................................................................67

7.3  HTTP Event...............................................................................................................68

7.3.1  General................................................................................................................69

7.3.2  Alarm sending......................................................................................................70

7.4  Alarm Output.............................................................................................................72

7.4.1  Setting..................................................................................................................73

7.5  Schedule...................................................................................................................76

7.5.1  Setting..................................................................................................................77

7.6  Alarm input................................................................................................................77

7.6.1  Setting..................................................................................................................78

7.7  Alarm buffer...............................................................................................................78

7.7.1  Setting..................................................................................................................79

7.8  Motion detection........................................................................................................79

7.8.1  Setting..................................................................................................................81

7.9  System Log ...............................................................................................................81

7.9.1  Setting..................................................................................................................82

Appendix.....................................................................................................................................83

FAQ..............................................................................................................................................87

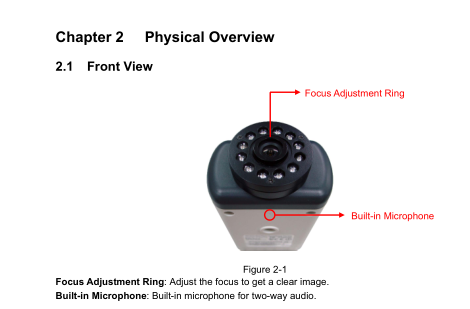

TL-SC3171用戶手冊——前視圖

TL-SC3171規格參數

接口

1個10/100M以太網RJ45口

1個直流插座

1個復位按鈕

1個3.5mm麥克風接口

1個3.5mm耳機接口

1個DI+/DI-/COM/NO接口

感應器

1/4” CMOS感應器

鏡頭

F2.0, 4.3mm

紅外燈

12個

夜視距離

10米

電源輸入

12V DC/1A

尺寸

136*75*47mm

使用環境

工作溫度: 0℃~40℃

存儲溫度: -40℃~70℃

工作濕度: 10%~90%RH 無凝結

存儲濕度: 5%~90%RH 無凝結
