華碩SABERTOOTH Z97 MARK 1主板用戶使用說明書pdf格式

華碩SABERTOOTH Z97 MARK 1主板采用LGA1150 插槽支持全新第4代/5代英特爾® 酷睿™ i7/i5/i3/Pentium®/Celeron® 處理器，Intel® Z97 Express 芯片，防塵衛士，杜絕灰塵困擾。以下文檔是華碩SABERTOOTH Z97 MARK 1用戶手冊，為英文版本，有需要的朋友可立即下載此文檔。

溫馨提示：

本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。

華碩SABERTOOTH Z97 MARK 1用戶手冊目錄

Safety information ......................................................................................................vi

About this guide ........................................................................................................vii

SABERTOOTH Z97 MARK 1 specifications summary ............................................ix

Package contents .....................................................................................................xiii

Installation tools and components .........................................................................xiv

Chapter 1:  Product Introduction

1.1  Special features..........................................................................................1-1

1.1.1  Product highlights........................................................................1-1

1.1.2  “Ultimate COOL” Thermal Solutions ...........................................1-2

1.1.3  “TUF Engine” Power Design .......................................................1-3

1.1.4  “Safe & Stable!” Guardian Angel .................................................1-3

1.1.5  ASUS EZ DIY ..............................................................................1-4

1.1.6  ASUS Exclusive Features ...........................................................1-5

1.1.7  Other special features .................................................................1-6

1.2  Motherboard overview ...............................................................................1-7

1.2.1  Before you proceed .....................................................................1-7

1.2.2  Motherboard layout .....................................................................1-8

1.2.3  Central Processing Unit (CPU) .................................................1-10

1.2.4  System memory ........................................................................1-11

1.2.5  Expansion slots .........................................................................1-23

1.2.6  Onboard buttons .......................................................................1-25

1.2.7  Jumpers ....................................................................................1-26

1.2.8  Onboard LEDs ..........................................................................1-28

1.2.9  Internal connectors....................................................................1-29

Chapter 2:  Basic installation

2.1  Building your PC system ...........................................................................2-1

2.1.1  Motherboard installation ..............................................................2-1

2.1.2  CPU installation...........................................................................2-3

2.1.3  CPU heatsink and fan assembly installation ...............................2-4

2.1.4  DIMM installation.........................................................................2-6

2.1.5  ATX Power connection................................................................2-7

2.1.6  SATA device connection .............................................................2-8

2.1.7  Front I/O Connector ....................................................................2-9

2.1.8  Expansion Card installation.......................................................2-10

2.2  BIOS update utility ...................................................................................2-11

2.3  Motherboard rear and audio connections .............................................2-12

2.3.1  Rear I/O connection ..................................................................2-12

2.3.2  Audio I/O connections ...............................................................2-14

2.4  Starting up for the first time ....................................................................2-16

2.5 Turning off the computer ........................................................................2-16

Chapter 3:  BIOS setup

3.1  Knowing BIOS ............................................................................................3-1

3.2  BIOS setup program ..................................................................................3-2

3.2.1  EZ Mode......................................................................................3-3

3.2.2  Advanced Mode ..........................................................................3-4

3.2.3  Q-Fan Control .............................................................................3-7

3.2.4  EZ Tuning Wizard .......................................................................3-9

3.3  My Favorites .............................................................................................3-10

3.4  Main menu ................................................................................................3-12

3.5  Ai Tweaker menu ......................................................................................3-14

3.6  Advanced menu .......................................................................................3-30

3.6.1  CPU Configuration ....................................................................3-31

3.6.2  PCH Configuration ....................................................................3-34

3.6.3  PCH Storage Configuration.......................................................3-35

3.6.4  System Agent Configuration .....................................................3-37

3.6.5  USB Configuration ....................................................................3-38

3.6.6  Platform Misc Configuration ......................................................3-39

3.6.7  Onboard Devices Configuration ................................................3-41

3.6.8  APM Configuration ....................................................................3-43

3.6.9  Network Stack Configuration.....................................................3-44

3.6.10  Intel(R) Rapid Storage Technology ...........................................3-45

3.7  Monitor menu ...........................................................................................3-46

3.8  Boot menu ................................................................................................3-51

3.9  Tool menu .................................................................................................3-57

3.9.1  ASUS EZ Flash 2 Utility ............................................................3-57

3.9.2  ASUS O.C. Profile .....................................................................3-58

3.9.3  ASUS DRAM SPD Information .................................................3-59

3.10  Exit menu ..................................................................................................3-60

3.11  Updating BIOS ..........................................................................................3-61

3.11.1  EZ Update .................................................................................3-61

3.11.2  ASUS EZ Flash 2 ......................................................................3-62

3.11.3  ASUS CrashFree BIOS 3 ..........................................................3-63

Chapter 4:  Software support

4.1  Installing an operating system .................................................................4-1

4.2  Support DVD information ..........................................................................4-1

4.2.1  Running the support DVD ...........................................................4-1

4.2.2  Obtaining the software manuals..................................................4-3

4.3  Software information .................................................................................4-4

4.4  AI Suite 3 .....................................................................................................4-4

Thermal Radar 2 ..........................................................................................4-7

4.4.1  Ai Charger+ ...............................................................................4-11

4.4.2  EZ Update .................................................................................4-12

4.4.3  USB BIOS Flashback ................................................................4-14

4.4.4  Push Notice ...............................................................................4-16

4.4.5  USB 3.0 Boost...........................................................................4-19

4.4.6  System Information ...................................................................4-20

4.4.7  USB Charger+ ...........................................................................4-22

4.4.8  Version ......................................................................................4-23

4.5  Turbo LAN .................................................................................................4-24

4.6  Audio configurations ...............................................................................4-25

Chapter 5:  RAID support

5.1  RAID configurations ..................................................................................5-1

5.1.1  RAID definitions ..........................................................................5-1

5.1.2  Installing Serial ATA hard disks ..................................................5-2

5.1.3  Setting the RAID item in BIOS ....................................................5-2

5.1.4  Intel ® Rapid Storage Technology Option ROM utility ..................5-3

5.2  Installing the RAID driver during Windows ® OS ................................................

installation ................................................................................................................5-7

Appendices

Notices .................................................................................................................... A-1

ASUS contact information ...................................................................................... A-5

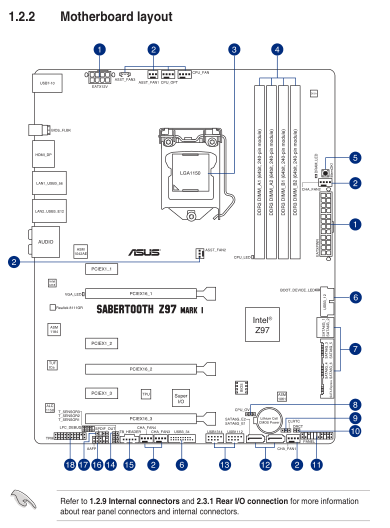

華碩SABERTOOTH Z97 MARK 1用戶手冊——主板結構圖

華碩SABERTOOTH Z97 MARK 1規格參數

中央處理器

支持英特爾® Socket 1150 第4/5代 酷睿™ i7/酷睿™ i5/酷睿™ i3/奔騰®/賽揚® 處理器

支持英特爾® 22 nm 處理器

支持 英特爾® Turbo Boost 2.0 技術

* 是否支持 Intel® Turbo Boost 2.0 技術的支持依照處理器類型而不同。

芯片組

支持英特爾® Z97

內存

4 x DIMM內存插槽, 最大容量 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered 內存 *

雙通道內存架構

支持Intel® Extreme Memory Profile (XMP) 技術

*對 Hyper DIMM 的支持功能由 CPU 的物理特性而定。

USB 接口

Intel® Z97 芯片組 :

6 x USB 3.0/2.0 連接端口 (2 個位于后側面板, 藍色, 4 個位于主板中央)

ASMedia® USB 3.0 控制器 :

2 x USB 3.0/2.0 連接端口 (2 個位于后側面板, 藍色)

Intel® Z97 芯片組 :

8 x USB 2.0/1.1 連接端口 (4 個位于后側面板, 黑色, 4 個位于主板中央)

尺寸規格

ATX 型式

12 英寸 x 9.6 英寸 ( 30.5 厘米 x 24.4 厘米 )
