微星B85M GAMING主板用戶使用說明書pdf格式

微星B85M GAMING主板支持 Socket 1150 架構的第四代 Intel® Core™ / Pentium® / Celeron® 處理器，支持 DDR3-1600 內存模塊，F(xiàn)ast Boot，可快速開機進入操作系統。以下文檔是微星B85M GAMING用戶手冊，為英文版，有需要的朋友可立即下載此文檔。

溫馨提示：

本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。

微星B85M GAMING用戶手冊目錄

Preface ............................................................................................................i

Copyright Notice ......................................................................................................ii

Trademarks ..............................................................................................................ii

Revision History ......................................................................................................ii

Smartphone Application ..........................................................................................iii

Technical Support ..................................................................................................iii

Safety Instructions ..................................................................................................iv

FCC-B Radio Frequency Interference Statement ................................................... v

CE Conformity ......................................................................................................... v

Radiation Exposure Statement ...............................................................................vi

European Community Compliance Statement ........................................................vi

Taiwan Wireless Statements ...................................................................................vi

Japan VCCI Class B Statement ..............................................................................vi

Korea Warning Statements .....................................................................................vi

Battery Information .................................................................................................vii

Chemical Substances Information .........................................................................vii

WEEE (Waste Electrical and Electronic Equipment) Statement ...........................viii

Getting Started Chapter 1............................................................................1-1

Packing Contents .................................................................................................1-2

Optional Accessories ...........................................................................................1-2

Assembly Precautions ..........................................................................................1-3

Motherboard Specifications ..................................................................................1-4

Connectors Quick Guide ......................................................................................1-7

Back Panel Quick Guide ......................................................................................1-9

CPU (Central Processing Unit) ..........................................................................1-11

Introduction to the LGA 1150 CPU ..............................................................1-11

CPU & Heatsink Installation .........................................................................1-12

Memory ..............................................................................................................1-15

Dual-Channel mode Population Rule ..........................................................1-15

Mounting Screw Holes .......................................................................................1-16

Power Supply .....................................................................................................1-17

JPWR1~2: ATX Power Connectors .............................................................1-17

Expansion Slots .................................................................................................1-18

PCI_E1~4: PCIe Expansion Slots ................................................................1-18

Video/ Graphics Cards ......................................................................................1-19

Single Video Card Installation ......................................................................1-19

Internal Connectors ............................................................................................1-20

SATA1~6: SATA Connectors .....................................................................1-20

CPUFAN1,SYSFAN1~2: Fan Power Connectors ........................................1-21

JFP1, JFP2: System Panel Connectors ......................................................1-22

JUSB1~2: USB 2.0 Expansion Connectors .................................................1-23

JUSB3: USB 3.0 Expansion Connector .......................................................1-24

JAUD1: Front Panel Audio Connector .........................................................1-24

JTPM1: TPM Module Connector ................................................................1-25

JCOM1: Serial Port Connector ....................................................................1-25

JCI1: Chassis Intrusion Connector .............................................................1-26

Jumpers .............................................................................................................1-27

JBAT1: Clear CMOS Jumper .......................................................................1-27

Drivers and Utilities ............................................................................................1-28

Total Installer ...............................................................................................1-28

Chapter 2 Quick Installation ........................................................................2-1

CPU Installation ...................................................................................................2-2

Memory Installation ..............................................................................................2-4

Motherboard Installation .......................................................................................2-5

Power Connectors Installation .............................................................................2-7

SATA HDD Installation .........................................................................................2-9

mSATA SSD Installation ....................................................................................2-10

Front Panel Connector Installation .....................................................................2-11

JFP1 Connector Installation .........................................................................2-11

Front Panel Audio Connector Installation ....................................................2-11

Peripheral Connector Installation .......................................................................2-12

USB2.0 Connector Installation .....................................................................2-12

USB3.0 Connector Installation .....................................................................2-12

Graphics Card Installation ..................................................................................2-13

Chapter 3 BIOS Setup .................................................................................3-1

Entering Setup .....................................................................................................3-2

Entering BIOS Setup .....................................................................................3-2

Overview ..............................................................................................................3-3

Operation .............................................................................................................3-5

SETTINGS ...........................................................................................................3-6

System Status ................................................................................................3-6

Advanced .......................................................................................................3-7

Boot .............................................................................................................3-14

Security ........................................................................................................3-14

Save & Exit ..................................................................................................3-15

OC ......................................................................................................................3-16

M-FLASH ...........................................................................................................3-22

OC PROFILE .....................................................................................................3-23

HARDWARE MONITOR ....................................................................................3-24

Appendix A Realtek Audio .......................................................................... A-1

Software Configuration .........................................................................................A-2

Software panel overview ................................................................................A-2

Auto popup dialog ..........................................................................................A-3

Hardware Default Setting .....................................................................................A-4

Appendix B Intel SBA ................................................................................. A-1

Prerequisites ........................................................................................................A-2

Installing Intel SBA ...............................................................................................A-3

Software Configuration .........................................................................................A-3

Software panel overview ................................................................................A-3

Password settings ..........................................................................................A-4

Help Button ..........................................................................................................A-4

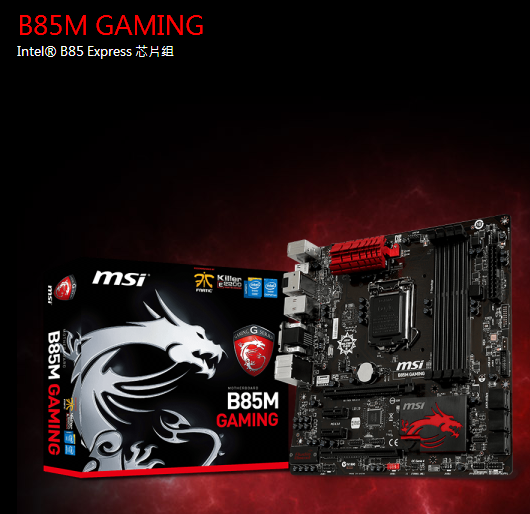

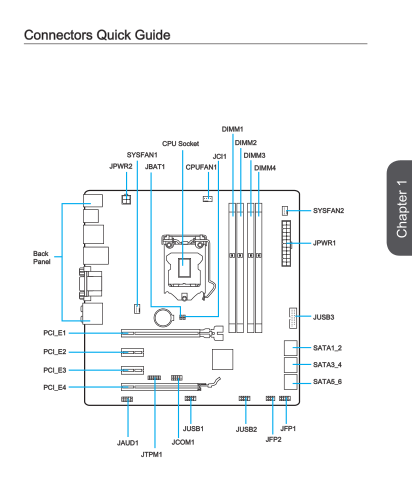

微星B85M GAMING用戶手冊——主板結構圖

微星B85M GAMING規格參數

CPU 插槽 1150

CPU (最高支持) i7

系統總線 100MHz

芯片組 Intel® B85 Express

DDR3 內存 DDR3 1066/1333/1600 MHz

內存通道 Dual

內存插槽 4

最大內存 (GB) 32

PCI-Ex16 2

PCI-E Gen Gen3 (16), Gen2 (4)

PCI-Ex1 2

USB 3.0 接口 (前端) 2

SATAIII 4

USB 2.0 接口 (前端) 4

SATAII 2

網絡接口 10/100/1000*1

TPM 1

USB 3.0 接口 (背板) 2

USB 2.0 接口 (背板) 4

音源接口 (背板) 6+Optical SPDIF-out

Display Port 1

VGA 1

HDMI 1

DVI 1

共享最大顯存 (MB) 1024

DirectX DX11

尺寸 M-ATX

CrossFire Y
