技嘉GA-X99-Gaming 5主板使用說明書(繁體版)pdf格式

技嘉GA-X99-Gaming 5支持新一代Intel® Haswell-E處理器，支持8插槽4 通道DDR4內存，殺手E2200專業游戲網卡，獨立左右聲道PCB分層設計。以下文檔是技嘉GA-X99-Gaming 5使用手冊，為繁體版本，有需要的朋友可立即下載此文檔。

溫馨提示：

本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。

技嘉GA-X99-Gaming 5使用手冊目錄

清點配件.......................................................................................................................6

選購配件.......................................................................................................................6

GA-X99-Gaming 5主機板配置圖.................................................................................7

GA-X99-Gaming 5主機板功能方塊圖........................................................................8

第一章 硬體安裝.......................................................................................................9

1-1 安裝前的注意須知......................................................................................... 9

1-2 產品規格 ........................................................................................................ 10

1-3 安裝中央處理器及散熱風扇 ..................................................................... 13

1-3-1 安裝中央處理器(CPU).......................................................................................13

1-3-2 安裝散熱風扇.....................................................................................................15

1-4 安裝記憶體模組........................................................................................... 16

1-4-1 四通道記憶體技術.............................................................................................16

1-4-2 安裝記憶體模組.................................................................................................17

1-5 安裝擴充卡.................................................................................................... 18

1-6 建構AMD CrossFire™/NVIDIA® SLI™系統....................................................... 19

1-7 後方裝置插座介紹....................................................................................... 21

1-8 安裝後方I/O裝置鐵片.................................................................................. 22

1-9 更換音效放大器........................................................................................... 23

1-10 插座及跳線介紹........................................................................................... 24

第二章 BIOS 組態設定............................................................................................37

2-1 開機畫面 ........................................................................................................ 38

2-2 BIOS設定程式主畫面................................................................................... 39

2-3 M.I.T. (頻率/電壓控制) .................................................................................. 42

2-4 System Information (系統資訊)...................................................................... 54

2-5 BIOS Features (BIOS功能設定)..................................................................... 55

2-6 Peripherals (整合週邊設定).......................................................................... 58

2-7 Chipset (晶片組設定) .................................................................................... 60

2-8 Power Management (省電功能設定)............................................................ 63

2-9 Save & Exit (儲存設定值並結束設定程式) ............................................... 65

第三章 建構SATA硬碟 ............................................................................................67

3-1 設定SATA控制器模式 .................................................................................. 67

3-2 安裝SATA RAID/AHCI驅動程式及作業系統.............................................. 79

第四章 驅動程式安裝 ............................................................................................83

4-1 Chipset Drivers (晶片組驅動程式) ............................................................... 83

4-2 Application Software (軟體應用程式) ........................................................... 84

4-3 Information (資訊清單)................................................................................... 84

第五章 獨特功能介紹 ............................................................................................85

5-1 BIOS更新方法介紹....................................................................................... 85

5-1-1 如何使用Q-Flash更新BIOS................................................................................85

5-1-2 如何使用@BIOS更新BIOS ................................................................................88

5-1-3 如何執行Q-Flash Plus .........................................................................................89

5-2 APP Center....................................................................................................... 90

5-2-1 EasyTune................................................................................................................91

5-2-2 System Information Viewer.....................................................................................92

5-2-3 EZ Setup.................................................................................................................93

5-2-4 Fast Boot ................................................................................................................96

5-2-5 Smart TimeLock......................................................................................................97

5-2-6 Smart Recovery 2...................................................................................................98

5-2-7 USB Blocker .........................................................................................................100

5-2-8 Ambient LED ........................................................................................................101

5-2-9 V-Tuner.................................................................................................................102

5-2-10 Smart Switch ........................................................................................................103

5-2-11 Cloud Station Server ............................................................................................104

5-2-12 Game Controller ...................................................................................................110

第六章 附錄............................................................................................................ 111

6-1 Qualcomm® Atheros Killer Network Manager ..................................................111

6-2 音效輸入/輸出設定介紹........................................................................... 112

6-2-1 2 / 5.1 聲道介紹.................................................................................................112

6-2-2 Creative軟體套件...............................................................................................112

6-2-3 S/PDIF輸出設定 ................................................................................................116

6-2-4 錄音裝置設定...................................................................................................117

6-2-5 錄音機使用介紹...............................................................................................119

6-3 疑難排解 ...................................................................................................... 120

6-3-1 問題集 ................................................................................................................120

6-3-2 故障排除............................................................................................................121

管理聲明 ................................................................................................................ 124

技嘉產品臺灣地區保固共同條款..................................................................... 125

技嘉科技快速服務中心...................................................................................... 126

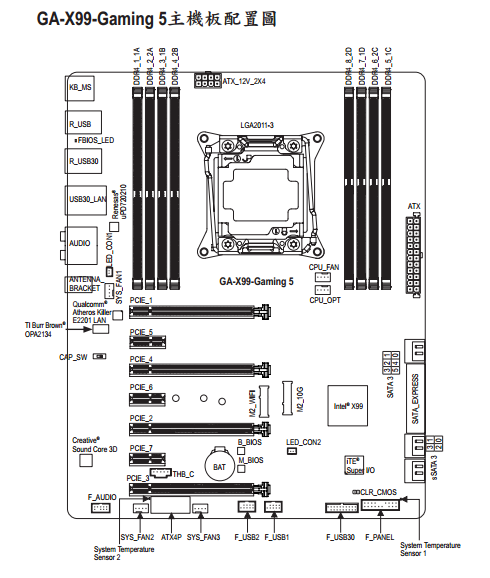

技嘉GA-X99-Gaming 5主板配置圖

技嘉GA-X99-Gaming 5規格參數

中央處理器(CPU)

支持LGA2011-3插槽處理器：Intel® Core™ i7處理器

L3高速緩存取決于CPU

芯片組

Intel® X99 高速芯片組

內存

8個DDR4 DIMM插槽，最高支持到64 GB

*由于Windows 32-bit操作系統的限制，若安裝超過4 GB容量?jī)?nèi)存時，實際上顯示之內存容量將少于實際安裝的內存容量。

支持4信道內存技術

支持DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz

支持non-ECC內存

支持Extreme Memory Profile (XMP)內存

支持RDIMM 1Rx8內存 (non-ECC模式運作)

音效

內建Creative® Sound Core 3D芯片

支持Sound Blaster Recon3Di

內建TI Burr Brown® OPA2134音效放大器芯片

支持High Definition Audio

支持2/5.1聲道

支持S/PDIF輸出

網絡

內建Qualcomm® Atheros Killer E2201網絡芯片(10/100/1000 Mbit)
